SR2200T Technical Data Of The Skid steer loader
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Product Description
-
Main technical parameters:
basic size
Working Height-Full Lift A (mm)
4370
Articulation height-Full Lift B
(mm)
3435
Buctom Heheight-Full Lift C
(mm)
3220
D (mm)
2140
Total length-with bucket E (mm)
3800
Total length-no bucket F (mm)
3030
Down Angle-Full lift G (。)
38
Uncharge height-Full lift H (mm)
2685
Discharge Distance-Full Lift J
(mm)
470
Up Angle-all lift K (。)
96
Uptilt angle L (。)
24
Crawler ground length M (mm)
1600
Distance oftrack center: N (mm)
1600
Ground clearance P (mm)
230
departure angle Q(。)
30
Bucket width R (mm)
1880
Total width-without bucket S
1920
Tail Length W (mm)
810
(mm)
Turning radius-with bucket X
(mm)
2400
Turning radius-without bucket Y
(mm)
1550
Turning radius-tail Z (mm)
1750
engine parameter
power (kw)
61.3 (State III)
Maximum torque / rotation speed (Nm / r)
293.5/(1850)
displacement (L)
3.319
fuel system
drive-by-wire
Hydraulic electrical system
Standard hydraulic flow
rate (L/min)
33~85
Maximum oil supply pressure (Mpa)
21
High hydraulic flow rate (optional) (L/min)
53~ 135
Maximum oil supply pressure (Mpa)
21
Fuel oil tank volume (L)
100
Work-walk control mode
Hydraulic pilot type
Basic technical parameters
specified load (kg)
1200
No-load travel speed
(km/h)
8/ 14
Operating weight (kg)
4240
Full load speed (km/h)
5/9

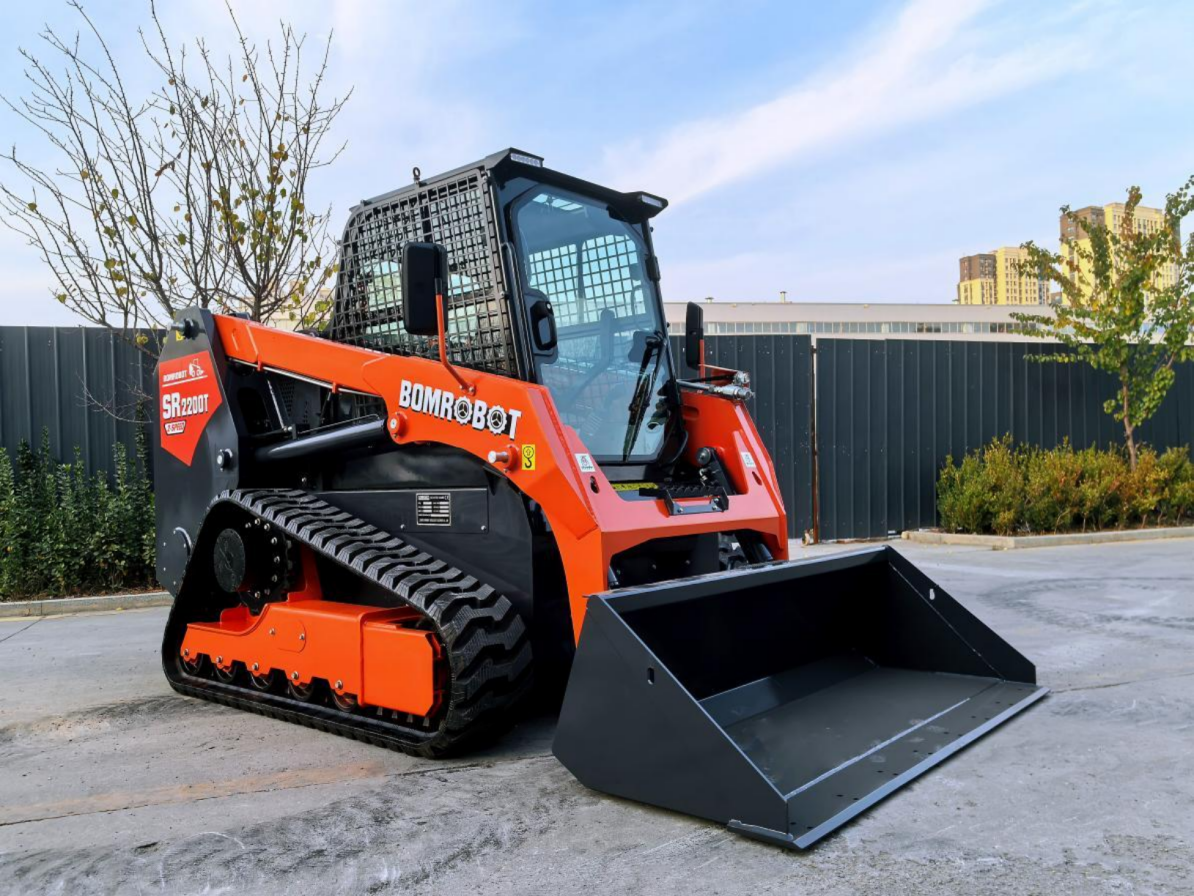

product picture
Main features of the products:

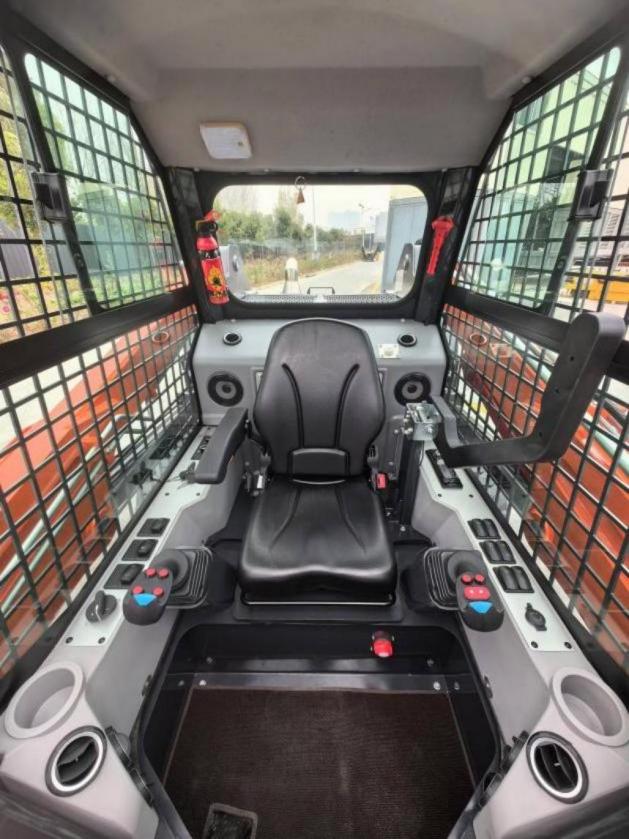

1、Comfort wide-body cab:

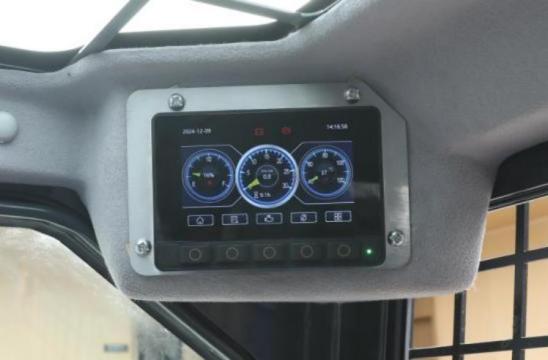

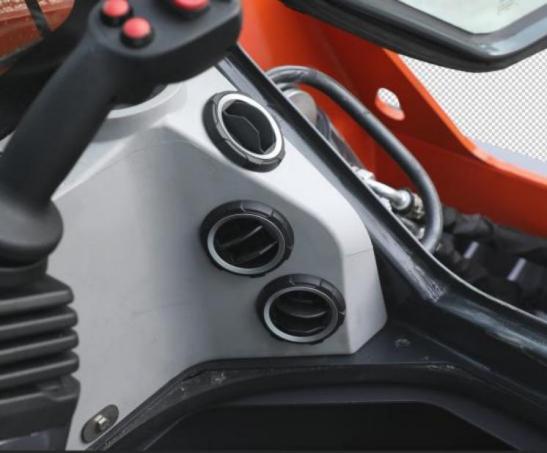

The cab is designed according to the ergonomic principle, spacious interior space, sufficient footstep space, good operating vision, all instruments are easy to observe parts, all button switches are within reach, safety armrest canprevent people from leaving the seat accidentally, and standard safety measures to ensure the safety of operators. The seat can be adjusted according to the human body and the comfort of multiple angles. The air conditioning effect is good, the internal air duct optimization design, flow field balance, stable temperature control, glass defrosting and foot warm air function. Color display screen, equipment operation information at a glance.
2、Foreign horse engine
The international famous brand Japanese Yangma YANMAR engine, strong power, high reliability, low noise,
energy saving and environmental protection. Yangma engine is widely used in construction machinery equipment
excavator, loader, sliding loader, etc., Yangma engine has won the recognition and favor of the majority of users with its stable quality and excellent reliability. In the integrated engine EUC ofthe automatic preheating control system, the temperature ofthe external environment can ensure that the vehicle can start normally; the engine fault diagnosis
function is convenient to check the engine fault, reduce the irreparable trauma of the engine failure, and bring greater economic loss to the customer

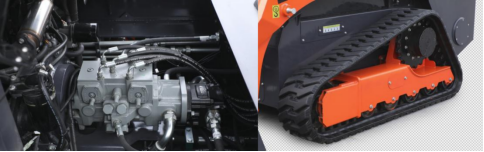

3、Closed-type hydrostatic walking system
Rexroth walking plunger pump is selected, equipped with anti-overload hydraulic large-torque motor reducer, large driving force, double-speed walking mode, with braking function, safe and reliable.
4、Enhanced traction force and stability
A durable rubber crawler with a smaller ground specific pressure provides enhanced traction, allowing you to easily cross mud, gravel and uneven surfaces. The two-speed driving system provides a driving speed of 14 km / h for rapid transfer near the construction site.
5、Dual throttle control
Equipped with foot throttle and electronic hand throttle, hand throttle for constant power in the workplace, foot throttle for shovel load work.

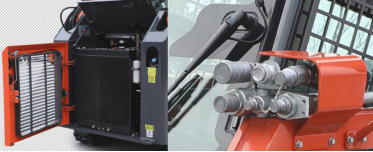

6、Large radiator
Optimize the heat balance system, add large radiator, optional high hydraulic flow system, the product increases the output flow through double pump confluence, can meet the needs of more large flow tools, such as milling machine, snow throwing machine, etc.

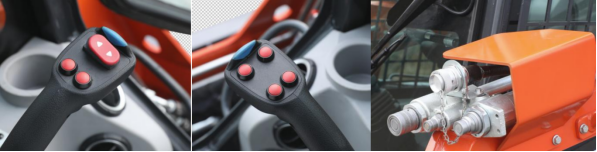

6, the connection is easy and convenient
Italy FASTER quick change joint, self-pressure relief function, the connection is simple and save time and effort. Optional multi-function handle and aviation connector, reliable performance, electronic signal output, easy control complex device.

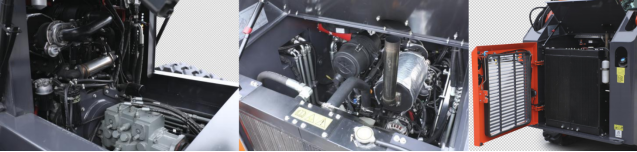

7、Maintenance is convenient and fast
Opening the rear door of the machine can easily check the engine air filter and exhaust system, lifting the cab can easily contact the engine fuel filter and oil filter, hydraulic system filter, shorten the maintenance time.
Annex: The product is constantly updated and improved, and we reserve the right to change the parameters and design without informing the user in advance. The appearance color of the product in the photo and the actual product may differ, and the color standard shall be subject to the physical object.
